520 Velocity

Back to ranges


Sea Jay 520 Velocity

$0.00
* Sail Away
Send an Enquiry
5.2-Velocity-Sports-SEA-JAY
5.2-Velocity-Sports-Top-Shot
8X7A2690
Click to zoom / enlarge this image
5.2-Velocity-Sports-SEA-JAY
5.2-Velocity-Sports-Top-Shot
8X7A2690

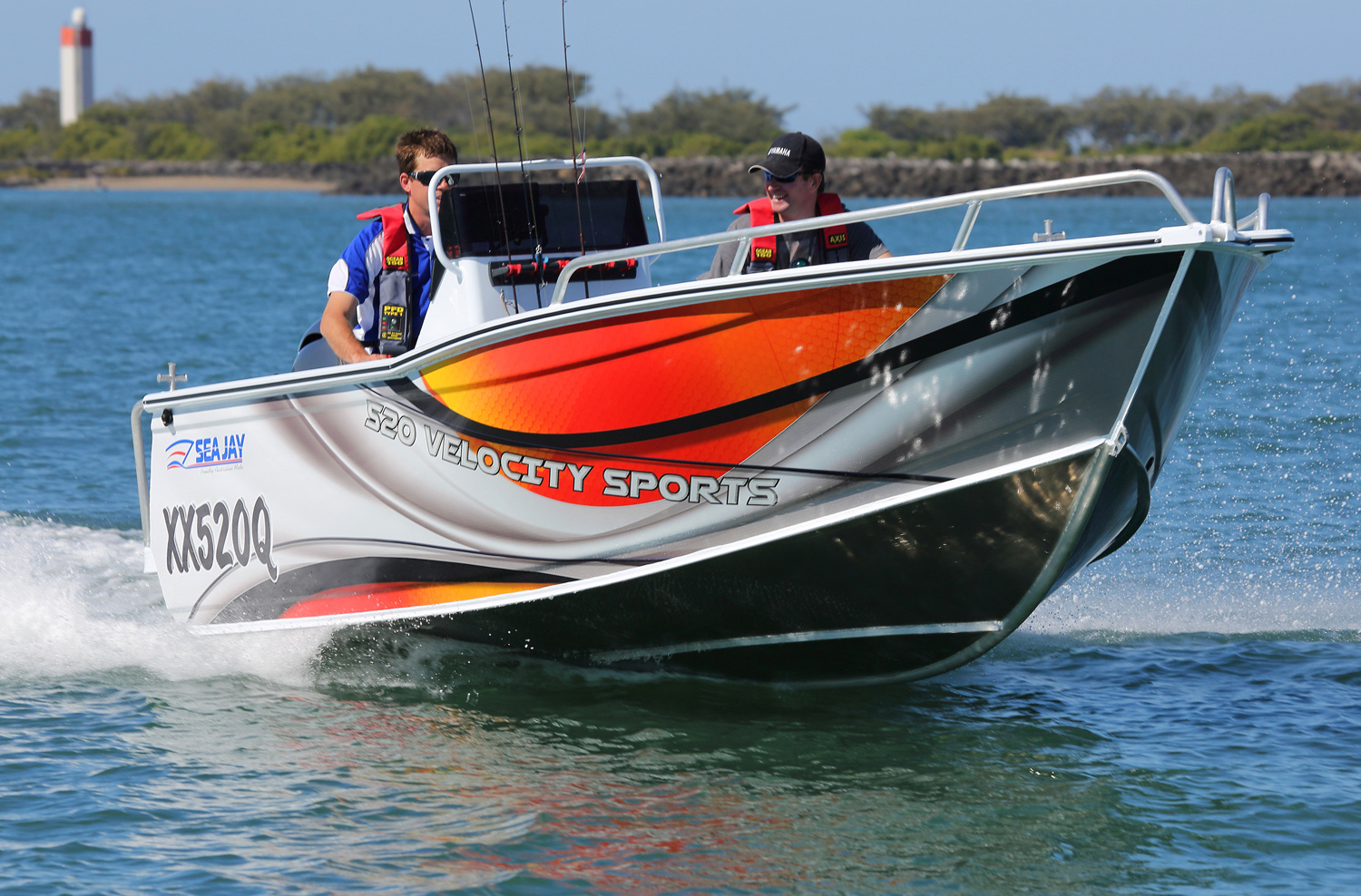

The VELOCITY is another model in the SAMURAI HULL line up, with the sleek raised sheer line (swept bow) and reverse chine, this model has all the best qualities Sea Jay is known for. Having 5083 plate bottom, with 50mm capped keel this model proved itself during testing, with increased dead rise and sharper entry this model simply slices through the waves, parting the water like no other. The Velocity has a larger high front cast deck with an abundance of storage within the hatch.

Side Console

Steering

5.22 metres

Length

Aluminium

Hull Material

Mono

Hull Type

Details Specifications Features & Options
Boat Details
  • Make: Sea Jay
  • Name: 520 Velocity
  • Model Number: 520 Velocity
  • Year: 2025
  • Length: 5.22 metres
  • Width: 2.4 metres
  • Dry Weight: 605 kg
  • Hull Material: Aluminium
  • Hull Type: Mono
  • Passenger Capacity: 5
  • Boat Usage: Fishing
  • Steering: Side Console
  • Warranty: 24 Months

SPECIFICATIONS  490  520  550  590
Bottoms (mm) – all 5083 grade high tensile plate 4.0 4.0 4.0 4.0
Sides (mm) 3.0 3.0 3.0 3.0
Beam (m) 2.3 2.4 2.45 2.47
Depth (m) 1.25 1.29 1.30 1.36
Depth (m) including windscreen 1.64 1.68 1.70 1.70
Floor ribs 12 13 14 15
Maximum no. of persons 5 5 6 6
Weight approx (kg) 555 605 660 690
Maximum hp 90 115 150 150
Maximum motor weight (kg) 175 195 240 240
Overall length (m) 5.22 5.52 5.82 6.22
 FEATURES  490  520  550  590
Samurai Hull ✓ ✓ ✓ ✓
Anchor well ✓ ✓ ✓ ✓
Bait tank plumbed – alloy ✓ ✓ ✓ ✓
Battery & oil rack in stern ✓ ✓ ✓ ✓
Boarding ladder – heavy duty ✓ ✓ ✓ ✓
Low floor under front cast ✓ ✓ ✓ ✓
Bollard x 3 ✓ ✓ ✓ ✓
Bow spirit & roller ✓ ✓ ✓ ✓
Bungs 38mm 1 1 1 1
Capped Keel 50mm  âœ“  âœ“  âœ“  âœ“
Console – Side or Centre (includes screen/shelf) ✓ ✓ ✓ ✓
Dive door – ✓ ✓ ✓
Drink holder 2 2 2 2
Electric motor plate – extended off gunwhale ✓ ✓ ✓ ✓
Ice box storage under front cast deck ✓ ✓ ✓ ✓
Front casting platform with 4 x hatches ✓ ✓ ✓ ✓
Flotation – under floor ✓ ✓ ✓ ✓
Floor – carpet / plywood ✓ ✓ ✓ ✓
Gunwhale rubber insert ✓ ✓ ✓ ✓
Painted chine up & inside ✓ ✓ ✓ ✓
Pinstriping ✓ ✓ ✓ ✓
3mm plate sides ✓ ✓ ✓ ✓
Planing strakes – welded ✓ ✓ ✓ ✓
Reverse chines  âœ“  âœ“  âœ“  âœ“
Rod holders (plastic) 6 6 6 6
Side pockets ✓ ✓ ✓ ✓
Spray chines ✓ ✓ ✓ ✓
Steering – hydraulic opt ✓ ✓ ✓
Steering – mechanical ✓ – – –
Tie Down lugs ✓  âœ“  âœ“  âœ“
Towing eye (double) ✓ ✓ ✓ ✓
Transducer mount bracket 2 2 2 2
Wide side decks ✓ ✓ ✓ ✓
FUEL TANK
Under floor / gunwhale filler / gauge 100ltr 150ltr 175ltr 200ltr
ELECTRICAL
Accessory pre-rig. Includes: battery box, isolation switch, switch panel, navigation lights, anchor light & bilge pump ✓ ✓ ✓ ✓
TRANSOM
Ultimate Edge 2 – Long Shaft 20″ ✓ – – –
Ultimate Edge 2 – Extra Long Shaft 25″ – ✓ ✓ ✓
RAILS
Heavy duty 32mm low bow rails ✓ ✓ ✓ ✓
Console screen grab rail ✓ ✓ ✓ ✓
Heavy duty 32mm rear transom rails ✓ ✓ ✓ ✓
SEATS
Deluxe fully upholstered folding swivel seat & pedestal 2 2 2 2
Seat Sockets 5 5 5 5




FACTORY OPTIONS 490 520 550 590
Sea Jay Trailer. Galvanised Steel or I Beam Alloy.
Get 12 months Free Extra Warranty		 opt opt opt opt
Bait Board. Standard, Deluxe or Removable opt opt opt opt
Coloured paint (White or Pipeline Grey as standard) opt opt opt opt
Centre Console or Side Console opt opt opt opt
Dual Battery accessory pre-rig upgrade opt opt opt opt
Extra Deluxe Seats (comes with 2 deluxe seats as standard) opt opt opt opt
Hatch over transom cutout opt opt opt opt
Hydraulic steering opt std std std
Minn Kota Factory fit up opt opt opt opt
Printed Vinyl Wrap opt opt opt opt
Rod Locker opt opt opt opt
Rod holder upgrade from plastic to alloy opt opt opt opt
Saltwater Deck Wash Kit opt opt opt opt
Sarca Anchor #3 with s/s swivel opt opt opt opt
Stress Free Winch opt opt opt opt
Upgrade to Velocity Sports TD (Tuff Deck) n/a opt opt opt
