630 TROJAN HT

Back to ranges


Sea Jay 630 TROJAN HT

$0.00
* Sail Away
Send an Enquiry
630-Trojan-HT-10
630-Trojan-HT-12
630-Trojan-HT-17
630-Trojan-HT-261
630-Trojan-HT-31
630-Trojan-HT-409
630-Trojan-HT-5
630-trojan
DSC_59301000
Click to zoom / enlarge this image
630-Trojan-HT-10
630-Trojan-HT-12
630-Trojan-HT-17
630-Trojan-HT-261
630-Trojan-HT-31
630-Trojan-HT-409
630-Trojan-HT-5
630-trojan
DSC_59301000

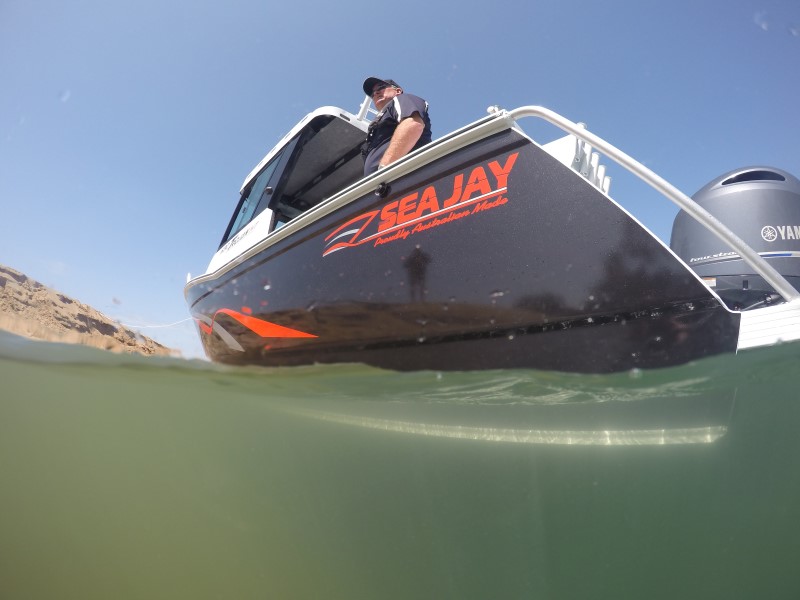

Sea Jay Aluminium Boats have taken the cutting edge SAMURAI HULL to the next level with the TROJAN HT cabin boats are a true off-shore fishing craft with long range capabilities. The latest generation SAMURAI HULL has high tensile 5083 plate bottom and offers high swept bow section, reverse chines, capped keel. The variable dead-rise on a wide body configuration give optimum ride and performance with great stability at rest. The spacious lined cabin has loads of storage space for fishing and safety gear with V berth bunks to accommodate even the 6 footers.

Side Console

Steering

8.05 metres

Length

Aluminium

Hull Material

Mono

Hull Type

Details Specifications Features & Options
Boat Details
  • Make: Sea Jay
  • Name: 630 TROJAN HT
  • Model Number: 630 TROJAN HT
  • Year: 2025
  • Length: 8.05 metres
  • Width: 2.48 metres
  • Dry Weight: 1950 kg
  • Hull Material: Aluminium
  • Hull Type: Mono
  • Passenger Capacity: 6
  • Boat Usage: Fishing
  • Steering: Side Console
  • Warranty: 24 Months

SPECIFICATIONS 630 670
Bottoms (mm) 5.0 5.0
Plate sides (mm) 3.0 4.0
Transom (mm) 5.0 5.0
Beam (m) 2.48 2.48
Hull length overall (m) 6.59 6.90
Overall length approximate inc motor (down) & trailer (m) 8.05 8.20
Overall height approximate including trailer (m) 3.25 3.27
Bunk length (m) 1.8 1.8
Depth – internal floor to top of side deck (freeboard) (mm) 760 775
Depth – keel to top of hard top (m) 2.79 2.81
Number of persons (at 80kg per person) 6 6
Weight approximate – hull only standard boat (kg) 1100 1195
Weight approximate – standard boat (dry) / motor (230kg) / trailer (alloy agr6.5m-14the (kg) 1950 TBA
Maximum horsepower (hp) 200 225
Maximum motor weight (kg) 285 295

Specification subject to change without notice.

FEATURES 630 670
Anchorwell âś“ âś“
Anchorwell mounting plate to suit stress free anchor âś“ âś“
Plumbed live bait tank âś“ âś“
Bait board Deluxe. includes 4 x alloy rod holders, 5 utility slots, 2 drink holders, 2 knife slots, drawer & removable cutting board. (Some engines may need trim limit switch) âś“ âś“
Tackle storage in transom to suit 5 x 237002 series plano tackle trays âś“ âś“
Dual Battery pre-rig – in transom âś“ âś“
Bollards – 1 x front, 2 x rear âś“ âś“
Bow sprit to suit sarca anchor âś“ âś“
Bungs – alloy 38mm 1 1
Checker plate drop down foot well (drained) âś“ âś“
Cabin storage – under bunks âś“ âś“
Cabin hatch with support stay âś“ âś“
Floor – 3mm checker plate wash down alloy floor with sump box âś“ âś“
Floatation – foam âś“ âś“
Foot rests – driver & passenger side âś“ âś“
Hard top – alloy âś“ âś“
Instrumentation dash âś“ âś“
Overhead radio console âś“ âś“
Reverse chine hull âś“ âś“
Side pockets (extra long) 2 2
Spray deflector strake âś“ âś“
Steering assembly cover âś“ âś“
Towing eye (double) – heavy duty âś“ âś“
Transducer brackets 2 2
Trim tab brackets 2 2
Transom boarding platform – non skid âś“ âś“
Wide side decks âś“ âś“
STANDARD FIT OUT INCLUSIONS
Checker plate main floor âś“ âś“
Dive door âś“ âś“
Heavy duty ladder âś“ âś“
Sump box with bilge pump and alloy bung with drain overboard âś“ âś“
Kill tank self flooding âś“ âś“
Hood lining – cabin (roof & sides) âś“ âś“
Inspection port x 1 (in cockpit floor) âś“ âś“
Non skid top deck âś“ âś“
Paint – white / fleck (2 pac commercial marine grade) âś“ âś“
Pin stripping âś“ âś“
Rod holders (alloy) x 6 – in wide side decks âś“ âś“
Rocket launcher with 8 x alloy rod holders âś“ âś“
Glass windscreen 3 piece âś“ âś“
Sliding windows 2 2
Plate style electric trim tabs âś“ âś“
ELECTRICAL
Accessory pre rig loom – to suit dual battery âś“ âś“
GME gx700 VHF radio flush mounted with 1.8m aerial âś“ âś“
Battery storage (large) x 2 âś“ âś“
Battery master / isolation switch (BEP) dual âś“ âś“
Bilge pump âś“ âś“
Bilge pump sump box âś“ âś“
Light (led) – cabin x 1 âś“ âś“
Light (led) – underside of hardtop x 1 âś“ âś“
Light (led) – anchor folding (on hard top) âś“ âś“
Light (led) – navigation âś“ âś“
Power socket 12v with USB âś“ âś“
Switch panel 4 gang 2 2
6 gang fuse panel (5 spare circuits) âś“ âś“
FUEL TANK
Under floor / gunwale filler (litres) 210 270
Fuel hose cover âś“ âś“
Fuel sender âś“ âś“
RAILS
Bow (32mm) âś“ âś“
Transom (32mm) âś“ âś“
Grab handles – around hard top âś“ âś“
SEATS
Offshore bucket bolster seats âś“ âś“
Drivers side seat box with tackle storage to suit 6 x plano 4-3730-0 tackle trays âś“ âś“
Passenger side seat box with storage hatch & shelf âś“ âś“
Seat slide and swivel – driver – passenger swivel only âś“ âś“
STEERING
Hydraulic steering âś“ âś“
Sports steering wheel âś“ âś“
TRANSOM
Ultimate Edge 2  –  25” âś“ âś“

Features subject to change without notice

OPTIONS
 630 670
Bunk in fill (centre) opt opt
Cabin bunk cushions (3” foam) 4 piece opt opt
Carpet on inside of cabin walls opt opt
120 Watt Solar System opt opt
Coloured sides (white or pipeline greay as standard) opt opt
Minn Kota 112lb 36v opt opt
Modify rails & cabin to fit 72″ 36v self deploy Minn Kota (Includes extended Minn Kota plate & battery storage area in place of flooding kill tank. Boat persons capacity may be reduced by 1
